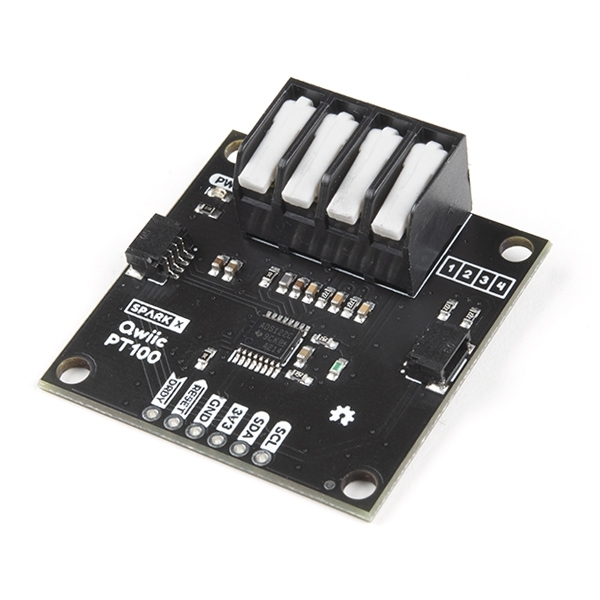

SPX-16770 · SparkFun
(SparkFun SPX-16770)
| Part number | SPX-16770 |
|---|---|
| Manufacturer | SparkFun |
| Category | Sensors › Temperature |
| Pins | 4 |
Qwiic PT100 - ADS122C04 pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | 3V3 | power | |
| 3 | SDA | bidirectional | |
| 4 | SCL | input |
Schematic symbol and footprint
Schematic symbol
Footprint: JST-SH 4-pin SMD right-angle (SM04B-SRSS-TB) - Qwiic / STEMMA QT — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
