SEN-15805 · SparkFun

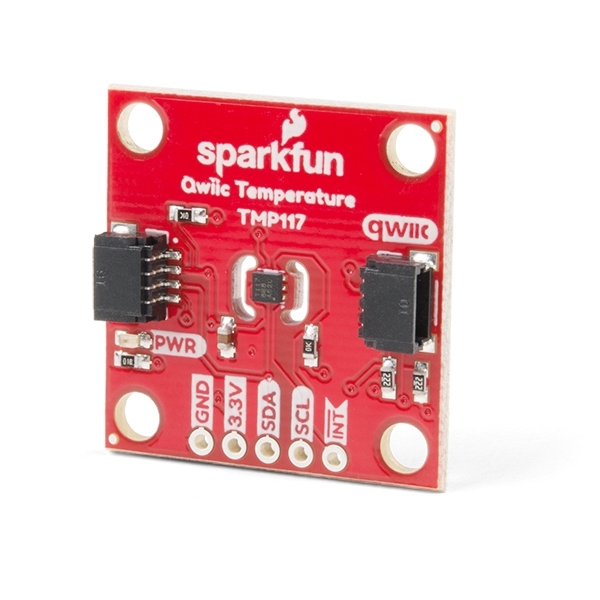

The SparkFun Qwiic TMP117 Breakout is a high precision temperature sensor equipped with an I2C interface. (SparkFun SEN-15805)
| Part number | SEN-15805 |
|---|---|
| Manufacturer | SparkFun |
| Category | Sensors › Temperature |
| Pins | 5 |
SparkFun High Precision Temperature Sensor - TMP117 (Qwiic) pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | 3.3V | power | |
| 3 | SDA | bidirectional | |
| 4 | SCL | bidirectional | |
| 5 | !INT | bidirectional |
Schematic symbol and footprint

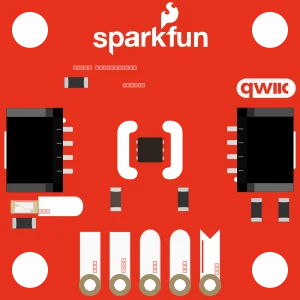

Footprint: SparkFun High Precision Temperature Sensor - TMP117 (Qwiic) (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
