ADA5745 · Adafruit
Adafruit product #5745.
| Part number | ADA5745 |
|---|---|
| Manufacturer | Adafruit |
| Category | Displays & LEDs › Display Modules & Monitors |
| Pins | 77 |

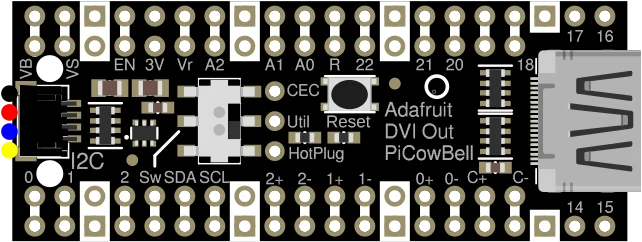

Adafruit PiCowbell DVI Output for Pico - Works with HDMI Display pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VBUS | power | |
| 2 | VSYS | bidirectional | |
| 3 | GND | ground | |
| 4 | !EN | bidirectional | |
| 5 | 3.3V | power | |
| 6 | VREF | bidirectional | |
| 7 | AD2 | bidirectional | |
| 8 | GND | ground | |
| 9 | AD1 | bidirectional | |
| 10 | AD0 | bidirectional | |
| 11 | !RESET | bidirectional | |
| 12 | IO22 | bidirectional | |
| 13 | GND | ground | |
| 14 | IO21 | bidirectional | |
| 15 | IO20 | bidirectional | |
| 16 | MOSI | bidirectional | |
| 17 | SCK | bidirectional | |
| 18 | GND | ground | |
| 19 | IO17 | bidirectional | |
| 20 | MISO | bidirectional | |
| 21 | VBUS | power | |
| 22 | VSYS | bidirectional | |
| 23 | GND | ground | |
| 24 | !EN | bidirectional | |
| 25 | 3.3V | power | |
| 26 | VREF | bidirectional | |
| 27 | AD2 | bidirectional | |
| 28 | GND | ground | |
| 29 | AD1 | bidirectional | |
| 30 | AD0 | bidirectional | |
| 31 | !RESET | bidirectional | |
| 32 | IO22 | bidirectional | |
| 33 | GND | ground | |
| 34 | IO21 | bidirectional | |
| 35 | IO20 | bidirectional | |
| 36 | MOSI | bidirectional | |
| 37 | SCK | bidirectional | |
| 38 | CEC | bidirectional | |
| 39 | UTIL | bidirectional | |
| 40 | HPD_3V | bidirectional | |
| 41 | IO0 | bidirectional | |
| 42 | IO1 | bidirectional | |
| 43 | GND | ground | |
| 44 | IO2 | bidirectional | |
| 45 | IO3 | bidirectional | |
| 46 | SDA | bidirectional | |
| 47 | SCL | bidirectional | |
| 48 | GND | ground | |
| 49 | D2P | bidirectional | |
| 50 | D2N | bidirectional | |
| 51 | D1P | bidirectional | |
| 52 | D1N | bidirectional | |
| 53 | GND | ground | |
| 54 | D0P | bidirectional | |
| 55 | D0N | bidirectional | |
| 56 | CKP | bidirectional | |
| 57 | CKN | bidirectional | |
| 58 | IO0 | bidirectional | |
| 59 | IO1 | bidirectional | |
| 60 | GND | ground | |
| 61 | IO2 | bidirectional | |
| 62 | IO3 | bidirectional | |
| 63 | SDA | bidirectional | |
| 64 | SCL | bidirectional | |
| 65 | GND | ground | |
| 66 | D2P | bidirectional | |
| 67 | D2N | bidirectional | |
| 68 | D1P | bidirectional | |
| 69 | D1N | bidirectional | |
| 70 | GND | ground | |
| 71 | D0P | bidirectional | |
| 72 | D0N | bidirectional | |
| 73 | CKP | bidirectional | |
| 74 | CKN | bidirectional | |
| 75 | GND | ground | |
| 76 | IO14 | bidirectional | |
| 77 | IO15 | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit PiCowbell DVI Output for Pico (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Where to buy
| Supplier | Stock | Price | Status | |
|---|---|---|---|---|
| Mouser | 4 | $6.95 (1+) | View |
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
