ADA1580 · Adafruit
Adafruit product #1580 — built on AR1100. Interfaces: USB.
| Part number | ADA1580 |
|---|---|
| Manufacturer | Adafruit |
| Category | Displays & LEDs › Display Modules & Monitors |
| Pins | 8 |

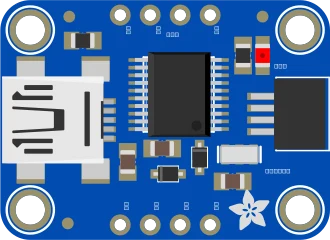

Resistive Touch Screen to USB Mouse Controller - AR1100 pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | RX | bidirectional | |
| 2 | TX | bidirectional | |
| 3 | GND | ground | |
| 4 | V+ | power | |
| 5 | X- | bidirectional | |
| 6 | Y- | bidirectional | |
| 7 | Y+ | bidirectional | |
| 8 | X+ | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit AR1100 Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
