ADA2219 · Adafruit
Adafruit product #2219 — built on TFP401.
| Part number | ADA2219 |
|---|---|
| Manufacturer | Adafruit |
| Category | Displays & LEDs › Display Modules & Monitors |
| Pins | 10 |

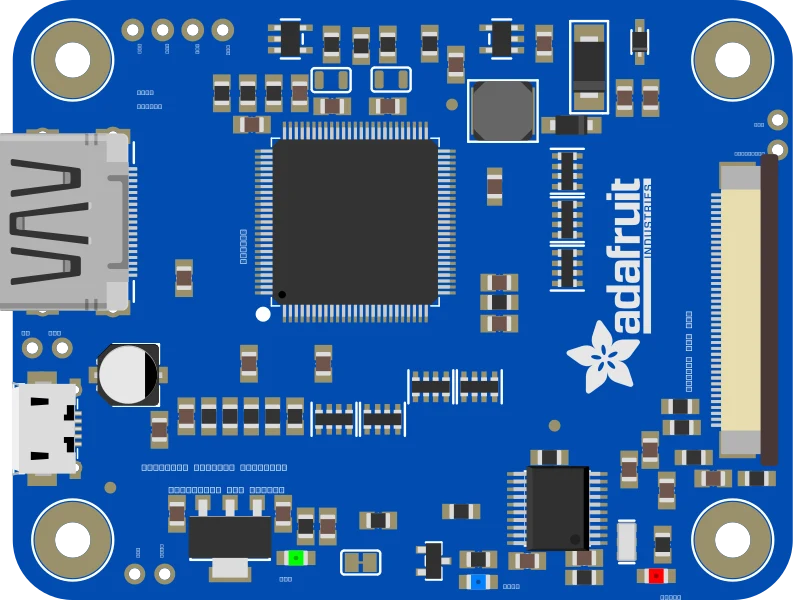

TFP401 HDMI/DVI Decoder to 40-Pin TTL Breakout - With Touch pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | 5V_HDMI | bidirectional | |
| 2 | GND | ground | |
| 3 | SCL | bidirectional | |
| 4 | SDA | bidirectional | |
| 5 | GND | ground | |
| 6 | BACKLITE | bidirectional | |
| 7 | 5V_PWR | bidirectional | |
| 8 | GND | ground | |
| 9 | GND | ground | |
| 10 | 3.3V | power |
Schematic symbol and footprint
Footprint: Adafruit TFP401 to 40 pin TFT with Touch (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
