ADA6001 · AdafruitActive
Adafruit product #6001. Interfaces: USB.
| Part number | ADA6001 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › Breakouts & Adapters |
| Pins | 5 |

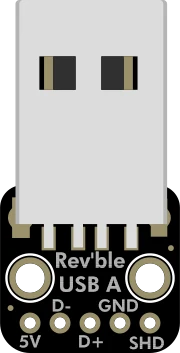

Adafruit Reversible USB Type A Plug Connector Breakout pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VBUS | power | |
| 2 | D- | bidirectional | |
| 3 | D+ | bidirectional | |
| 4 | GND | ground | |
| 5 | SHIELD | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit Reversible USB Type A Plug Connector Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
