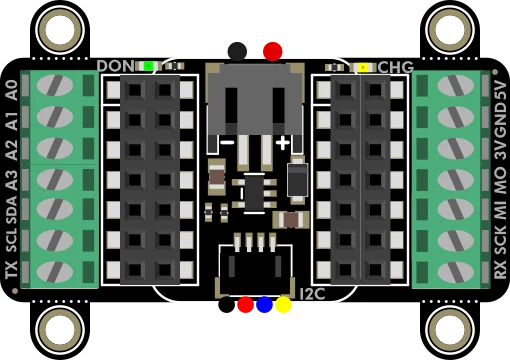

ADA6495 · AdafruitActive
Adafruit product #6495.
| Part number | ADA6495 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › Breakouts & Adapters |
| Pins | 14 |
Adafruit Terminal Block BFF Add-On for QT Py and Xiao pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | A0 | bidirectional | |
| 2 | +5V | power | |
| 3 | A1 | bidirectional | |
| 4 | GND | ground | |
| 5 | A2 | bidirectional | |
| 6 | 3.3V | power | |
| 7 | A3 | bidirectional | |
| 8 | MOSI | bidirectional | |
| 9 | SDA | bidirectional | |
| 10 | MISO | bidirectional | |
| 11 | SCL | bidirectional | |
| 12 | SCK | bidirectional | |
| 13 | TX | bidirectional | |
| 14 | RX | bidirectional |
Schematic symbol and footprint
Schematic symbol
Footprint: Adafruit Terminal Block BFF (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
