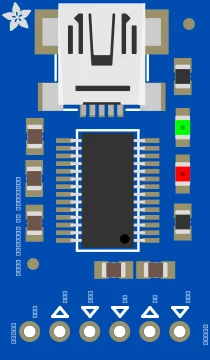

Name: FTDI Friend with Micro USB Port + extras
Brand: Adafruit

ADA284 · Adafruit

Adafruit product #284. Interfaces: USB.

Part number	ADA284
Manufacturer	Adafruit
Category	Interface & Expansion › Breakouts & Adapters
Pins	6

FTDI Friend with Micro USB Port + extras pinout

Pin	Name	Type
1	GND	ground
2	CTS	bidirectional
3	VCC	power
4	TX	bidirectional
5	RX	bidirectional
6	RTS/DTR	bidirectional

Schematic symbol and footprint

Footprint: Adafruit FTDI Friend (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
