DEV-15794 · SparkFunActive

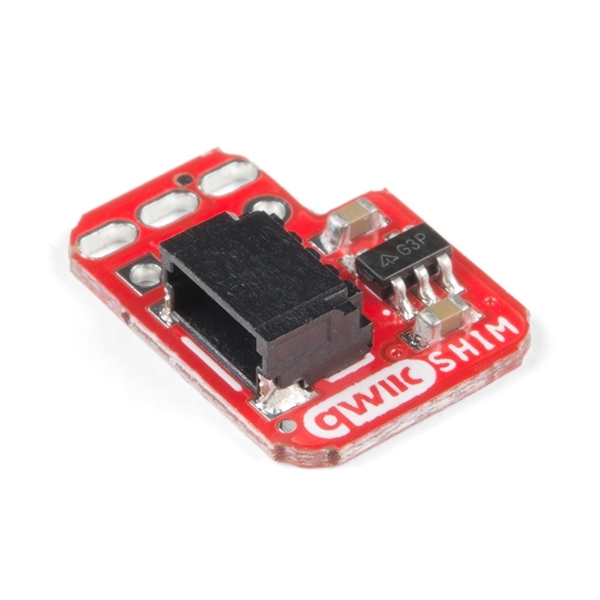

The SparkFun Qwiic SHIM is a small, easily removable breakout that easily adds a Qwiic connector to your Raspberry Pi or NVIDIA Jetson Orin Nano. (SparkFun DEV-15794)
| Part number | DEV-15794 |
|---|---|
| Manufacturer | SparkFun |
| Category | Interface & Expansion › Breakouts & Adapters |
| Pins | 4 |
SparkFun Qwiic SHIM for Raspberry Pi & NVIDIA Jetson Orin Nano pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | 3V3 | power | |
| 3 | SDA | bidirectional | |
| 4 | SCL | input |
Schematic symbol and footprint
Schematic symbol
Footprint: JST-SH 4-pin SMD right-angle (SM04B-SRSS-TB) - Qwiic / STEMMA QT — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
