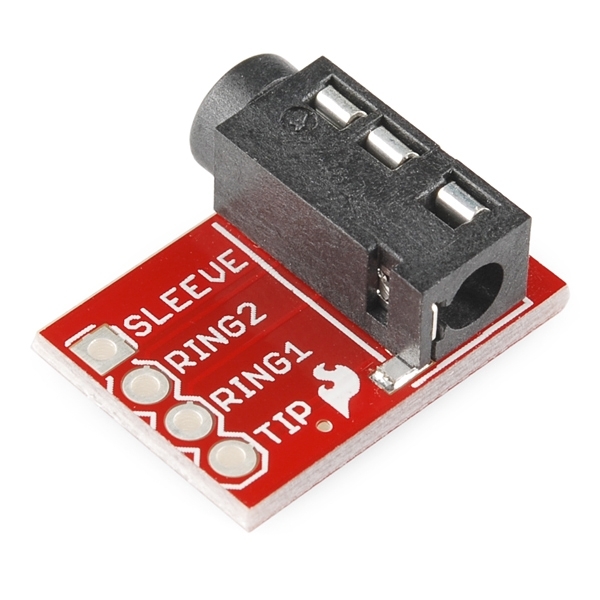

BOB-11570 · SparkFunActive
(SparkFun BOB-11570)
| Part number | BOB-11570 |
|---|---|
| Manufacturer | SparkFun |
| Category | Interface & Expansion › Breakouts & Adapters |
| Pins | 4 |
SparkFun TRRS 3.5mm Jack Breakout pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | SLEEVE | bidirectional | |
| 2 | RING2 | bidirectional | |
| 3 | RING1 | bidirectional | |
| 4 | TIP | bidirectional |
Schematic symbol and footprint
Footprint: Audio Jack (TRRS) 3.5mm Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-09; excluding tax and shipping.
