BOB-10031 · SparkFunActive
(SparkFun BOB-10031)
| Part number | BOB-10031 |
|---|---|
| Manufacturer | SparkFun |
| Category | Interface & Expansion › Breakouts & Adapters |
| Pins | 5 |

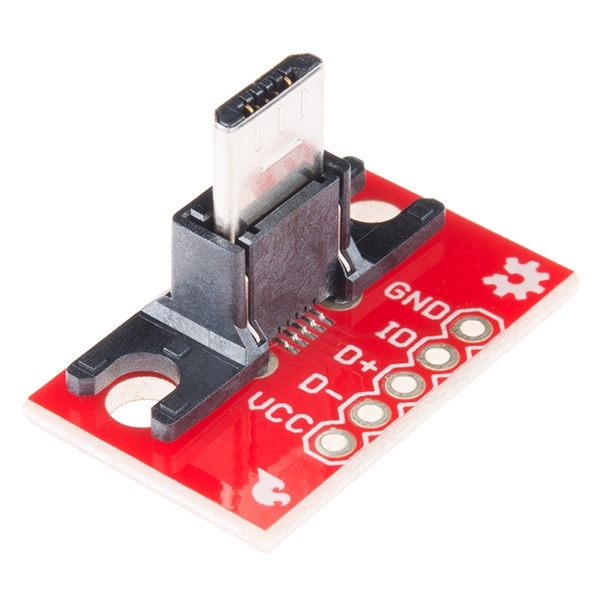

SparkFun USB Micro-B Plug Breakout pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | ID | bidirectional | |
| 3 | D+ | bidirectional | |
| 4 | D- | bidirectional | |
| 5 | VCC | power |
Schematic symbol and footprint
Footprint: SparkFun USB MicroB Plug Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
