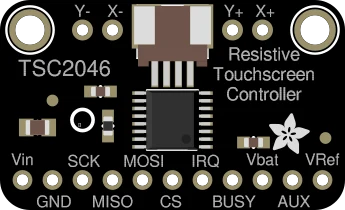

ADA5767 · Adafruit
Adafruit product #5767 — built on TSC2046. Interfaces: SPI.
| Part number | ADA5767 |
|---|---|
| Manufacturer | Adafruit |
| Category | Displays & LEDs › Display Modules & Monitors |
| Pins | 15 |
Adafruit TSC2046 SPI Resistive Touch Screen Controller pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | Y- | bidirectional | |
| 2 | X- | bidirectional | |
| 3 | Y+ | bidirectional | |
| 4 | X+ | bidirectional | |
| 5 | VDD | power | |
| 6 | GND | ground | |
| 7 | SCK | bidirectional | |
| 8 | MISO | bidirectional | |
| 9 | MOSI | bidirectional | |
| 10 | CS | bidirectional | |
| 11 | !PENIRQ | bidirectional | |
| 12 | BUSY | bidirectional | |
| 13 | VBAT | power | |
| 14 | AUX | bidirectional | |
| 15 | VREF | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit TSC2046 SPI Resistive Touch Screen Controller (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Where to buy
| Supplier | Stock | Price | Status | |
|---|---|---|---|---|
| Mouser | 6 | $4.95 (1+) | View |
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
